Specifications

CPU	NXP i.MX 8M Mini Cortex A53 Quad 1.8GHz Cortex M4 400MHz
3D GPU	Single Shader
Storage	eMMC 4GB/8GB/16GB 4-bit SD/MMC
RAM	LPDDR4 2GB
Display	Mipi DSI 4 Lane 1080p60
USB	2 x 2.0 USB OTG Port
Network	Ethernet 10/100/1000 MAC M.2 E-key Wi-Fi card slot
I/O	2 x 100-pin connectors 1 x 20-pin connector
Temperature Range	0 to 70°C (-40 to 105°C Optional)

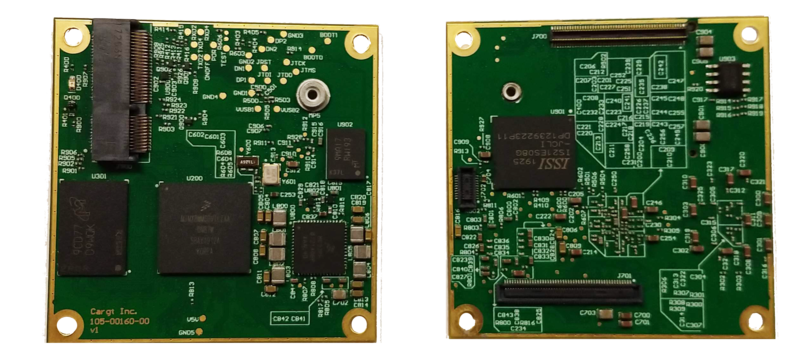

Dimensions	50mm x 50mm

Documentation

Product Brief

Schematic and Assembly drawing available upon request
